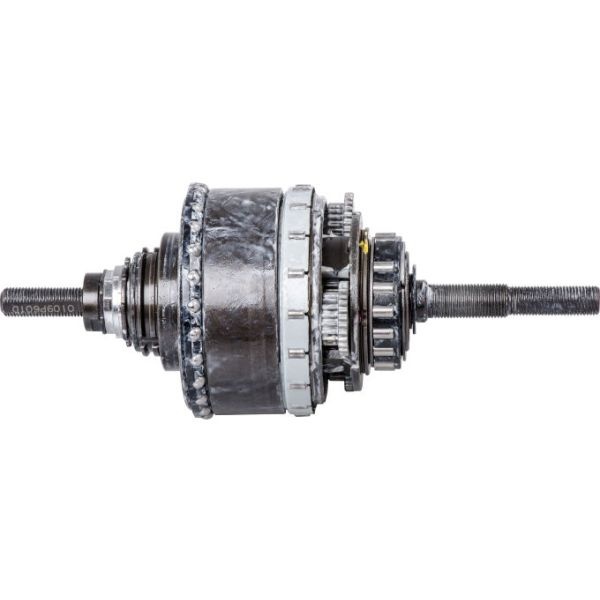

Shimano Binnenwerk - Nexus 8 Center - Lock versnellingsnaaf SG-C6001-8D - 187 mm as

 Productinformatie

• Aslengte: 187 mm
• Model: SG-C6001-8D (Nexus 8 met Center Lock remaansluiting)

     Het binnenwerk bestaat uit de volgende onderdelen:

• Y34R79000 Stop ring (diameter 12 mm / 1.0 mm)
• Y34R79010 Stop ring (diameter 12 mm / 1.3 mm)
• Y34R79020 Stop ring (diameter 12 mm / 1.6 mm)
• Y3EH98030 Ring gear unit
• Y3EH98040 Carrier unit
• Y36V22000 Ring gear 1
• Y34R80000 Ring gear 1 stop spring
• Y38X98050 Ball retainer O (3/16" x 26)
• Y3EK98020 Hub axle unit (axle length 187 mm)
• Y34R98050 Clutch unit
• Y34R21000 Return spring A
• Y37J98020 Driver unit
• Y34R98070 Ball retainer P (3/16" x 13)
• Y37J98080 Right hand cone with seal
• Y34R12000 Driver plate
• Y34R98090 Lock washer
• Y34R09000 Stop washer
• Y35Z11000 Right hand serated lock nut (5.4 mm)
